Logic Apps resubmit considerations

Logic Apps offers the long-requested resubmit feature. This is very a powerful capability to take into account when designing an error handling strategy. However, do not take the resubmit for granted. Ensure you know how it behaves or you might end-up with some unpleasant surprises at the end of your project. Read about it on the internet, discuss with your colleagues and eventually get your hands dirty! Some small prototyping during design phase is definitely recommended.

Design to benefit from resubmit!

The resubmit functionality will create a new instance of the Logic App by firing an identical trigger message as within the originally failed Logic App. Depending on the type of trigger message, this is helpful or not. However, you can design to benefit from resubmit. Let’s have a closer look!
Resubmit 01

The Logic App below kicks off on a configured time interval. It iterates through all files in the folder, parses them into XML, executes a transformation, sends them to the output folder and eventually deletes them. If something goes wrong, you cannot use the resubmit. The two main reasons are:

  • The trigger message does not contain the data you act upon, so resubmitting does not guarantee that you re-process the same message.
  • One Logic App handles multiple messages, so it’s not possible to simply resubmit just one of them

Resubmit 02

Let’s adjust this into a more convenient design.  Here we use the file trigger, that ensures that one Logic App only handles one message.  The trigger also contains the payload of the message, so a resubmit guarantees that the same data will be reprocessed.  Now we can fully benefit from the resubmit function.
Resubmit 03

We can further improve this Logic App. In case the last delete action fails, we can still resubmit the message. However, this will result in the message being written twice to the output folder, which is not desired. In order to optimize this, let’s split this logic app in two…

The first Logic App receives the file content, passes it to the second logic app and deletes the file from the input folder.
Resubmit 04

The second Logic App takes care of the message processing: flat file parsing, transformation and writing the file to the output.  Remark that the Request / Response actions are set at the beginning of the Logic App, which actually means that the processing logic is called in an asynchronous fashion (fire and forget) from the perspective of the consuming Logic App.
Resubmit 05

With such a design, the message can be deleted already from the input folder, even if the creation of the output file fails. Via the resubmit, you are still able to recover from the failure. Remember: design to benefit from resubmit!

Think about data retention!

If your error handling strategy is built on top of the resubmit function, you need to consider the duration that your Logic App history is available. According to the documentation, the Logic App storage retention is 90 days. Seems more than sufficient for most integration scenarios!

Resubmit Caveats

HTTP Request / Response

Consider the following Logic App. It starts with a request / response, followed by additional processing logic that is simulated by a Delay shape.

 Resubmit 06

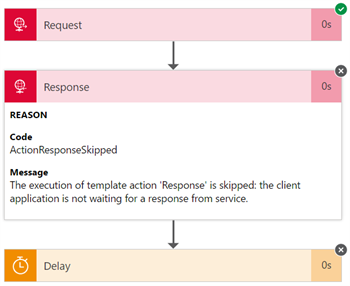

What happens if we resubmit this?  As there is no real client application, the response action is skipped.  The execution of template action ‘Response’ is skipped: the client application is not waiting for a response from service. Cool! The engine does not fail on this and nicely skips the unnecessary step.  However, as a consequence, the processing logic is also skipped which is not our intention.
Resubmit 07

This issue can be tackled by diving into the code view.  Navigate to the Delay action and add the Skipped status in its runAfter section.  This means that the Delay action will be executed whenever the preceding Response action succeeded (normal behavior) or was skipped (resubmit behavior).
Resubmit - Skipped

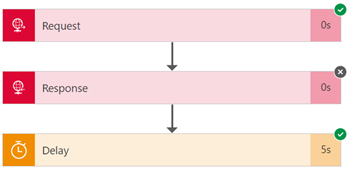

This trick results in the desired outcome for a resubmit:
Resubmit 08

ServiceBus PeekLock

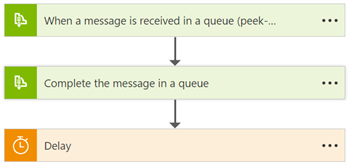

Consider the following Logic App. It starts with a Service Bus PeekLock – Complete combination, a best practice to avoid message loss, followed by additional processing logic that is simulated by a Delay shape.
Resubmit 09

What happens if we resubmit this?  As the message was already completed in the queue by the original run, we get an exception: “Failed to complete the message with the lock token ‘baf877b2-d46f-4fae-8267-02903d9a9642’. The lock on the message has been lost“.  This exception causes the Logic App to fail completely, so the resubmit is not valuable.
Resubmit 10

As a workaround, you can update the Delay action within the code view and add the Failed status in its runAfter section.  This is not the prettiest solution, but I couldn’t find a better alternative.  Please share your ideas below, if you identified a better approach.
Resubmit - Skipped 2

On a resubmit, we now get the desired behavior.
Resubmit 11

Are singleton Logic Apps respected?

Logic Apps provide the ability to have singleton workflows. This can be done by adding the “operationOptions” : “SingleInstance” to the polling trigger. Triggers are skipped in case a Logic App instance is still active. Read more on creating a Logic Apps Singleton instance.

I was curious to see whether resubmit respects the singleton instance of a Logic App. Therefore, I created a Logic App with a 30 seconds delay. At the moment a Logic App instance was active, I toggled a resubmit. This resulted in two active instances at the same time.
Resubmit 12

It’s important to be aware of the fact that a resubmit might violate your singleton logic!

Against what version is the Logic App resubmitted?

What happens in case you have a failed instance of Logic App v1? Afterwards, you apply changes to the workflow definition, which results in v2. Will the resubmit of the failed v1 instance, result in a v1 or v2 instance that is fired?

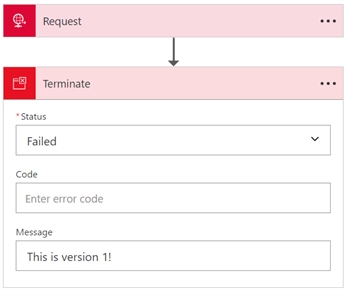

I created a very simple v1 Logic App. It receives an HTTP request and terminates the workflow with the message “This is version 1!”.
Resubmit 13

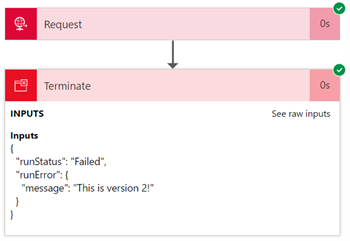

Then I’ve modified this Logic App so it terminates with the message “This is version 2!”.  Afterwards, I’ve resubmitted the failed v1 instance and it terminated with the “This is version 2!” message.
Resubmit 14

So remember that resubmitting is always performed against the latest deployed version of your Logic App. Increasing the “contentVersion” explicitly for every modification, does not alter this behavior.

Feedback to the product team

The resubmit feature is very powerful from a runtime perspective, but it can be improved from an operational point of view. It would be nice to have visibility on the resubmit, so that you know as an operator that specific failed workflows can be ignored, because they were resubmitted already. This can be achieved by adding an additional workflow status: Resubmitted. Another alternative solution is allowing an operator to query for failed Logic App run that were not resubmitted yet. Do you like this suggestion? Please vote for it!

At the moment, Logic Apps does not support a resume function. It would be nice that you could explicitly add a persistence point to the Logic App, so that in case of a failure you can resume from the last point of persistence. Let the product team know if you’re interested in this feature. You can work around this limitation by splitting your Logic App into multiple smaller workflows. This kind of introduces a resume function, because you can resubmit at every small workflow. As a drawback, the monitoring experience becomes more painful.

Nice to see that the “singleton” feature has been introduced! Why not taking it one level further and make the number of allowed concurrent instances configurable? In this way, we can easily “throttle” the logic apps by configuration in case the backend system cannot handle a high load. Vote here if you like this suggestion!

Hope this write-up gave you some new insights into Logic Apps resubmit capabilities!
Toon
